- Patents for a new aero filed
- Gets advanced tech for package
- Could be introduced next year
The Yamaha R1 may currently be limited to track use in Europe after the company chose not to update it for the latest Euro5+ emission standards, but that hasn’t stopped development work behind the scenes. A recent patent shows that Yamaha is exploring new active bodywork technology that could improve both performance and emissions compliance.
The idea of controlling airflow with movable shutters isn’t new. More recently, many modern cars have brought the idea back, with automatic shutters that close when cooling isn’t needed to improve aerodynamics and efficiency.

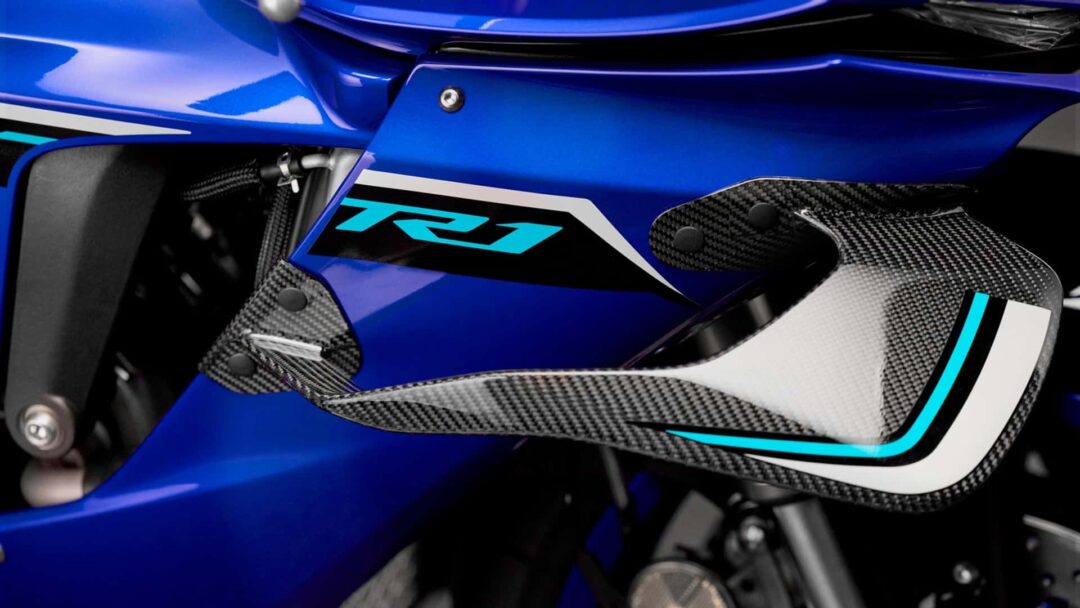

Yamaha’s patent takes a fresh approach by placing adjustable shutters on the cooling outlets along the R1’s fairing sides instead of at the radiator’s intake. These shutters are powered by compact stepper motors connected with simple belt systems, keeping things lightweight and cost-effective. Sensors measuring coolant temperature, catalyst heat, air temperature, speed, and throttle position would allow the system to open or close the vents as needed.
When shut, the vents would reduce internal airflow, building pressure at the front intake and pushing more air around the sides of the bike. This cleans up turbulence, cuts drag, and helps the R1 reach higher speeds with less effort. The revised fairing design also offers smoother airflow around the engine compared to the current setup.
Because bikes are engineered to handle extreme heat scenarios, the system could keep vents closed most of the time in cooler weather or at highway speeds, delivering significant aerodynamic gains. Another benefit is helping catalytic converters heat up quickly and stay in the optimal temperature range.
Interestingly, the system could even be tuned to momentarily prioritise performance over cooling, keeping the vents shut during full-throttle bursts or at top speed. In racing, particularly World Superbikes, where road-going features must be retained, this could provide a valuable edge if such active aerodynamics were fitted to production models.
