The rush among major manufacturers to embrace electric motorcycles appears to have cooled. High pricing, limited range and performance gaps at the premium end of the market have made it difficult for many EV sportbikes to gain real traction. Yet development has not stopped. A new patent application from CFMoto offers the clearest indication so far of the company’s ambitions for a lightweight electric sportbike.
The latest filing builds on designs first seen last year, but with far more technical detail. It lays bare the battery layout, motor positioning and frame structure, revealing a configuration that echoes ideas emerging across the industry. Much like Honda’s forthcoming Honda WN7, its first large-capacity electric motorcycle, the battery is used as a stressed structural member. The motor and transmission are positioned rearward to free up packaging space.

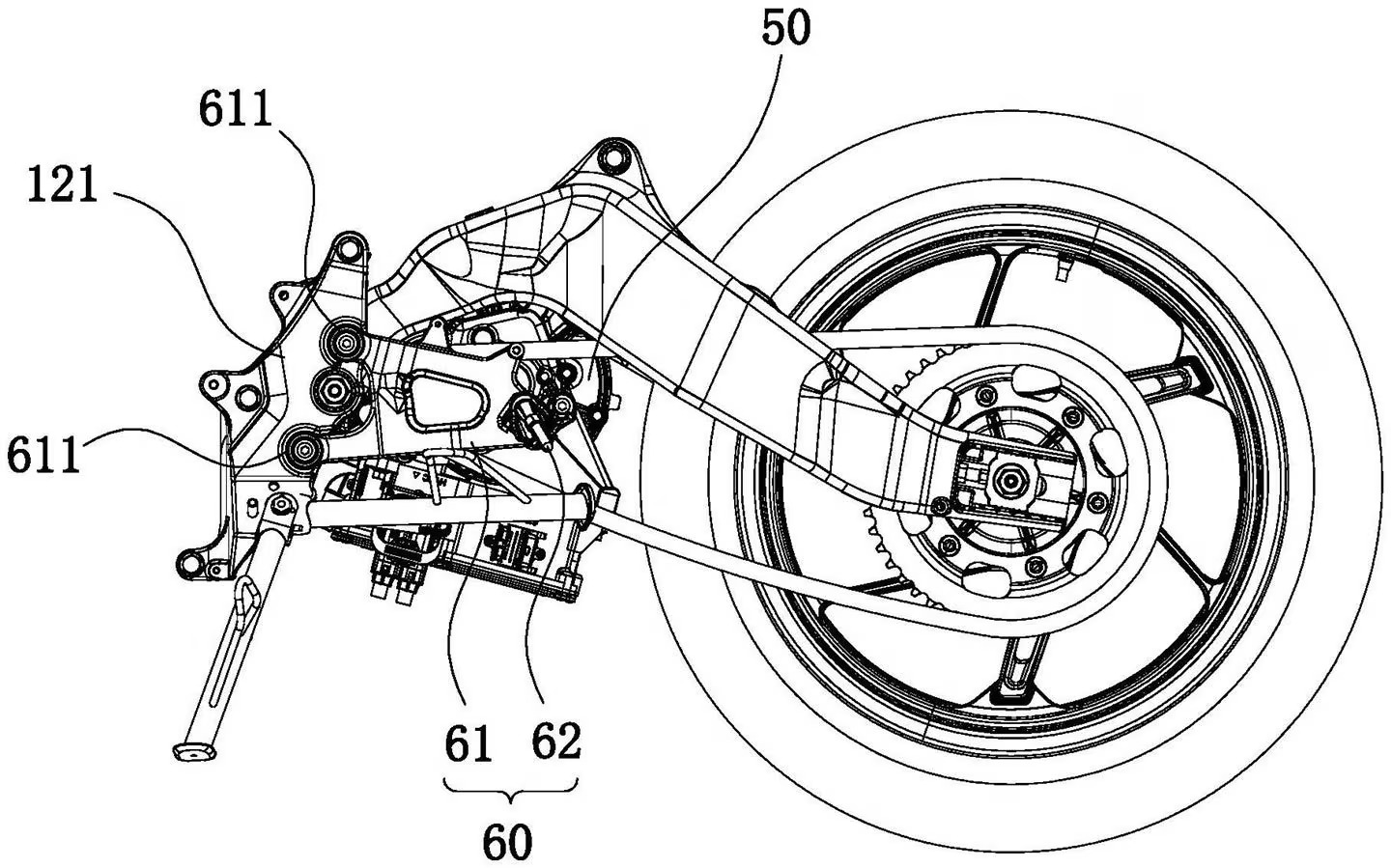

In CFMoto’s case, the motor sits notably far back, behind the swingarm pivot. To compensate, the swingarm curves up and over the motor, avoiding excess width. The compromise is the absence of a rising-rate linkage; instead, the rear shock mounts directly to the swingarm and connects to a bracket fixed to the rear of the battery housing.
The battery pack forms the core of the chassis. The steering head mounts to its front, while the motor and transmission bolt to it via cast alloy brackets that also support the footpegs and side stand. However, unlike some designs that rely solely on the battery casing as the frame, CFMoto integrates tubular aluminium trellis sections on either side. These act as reinforcement, reducing stress on the battery case and adding a layer of protection. A steel rear subframe ties into both the battery housing and the cast rear brackets.

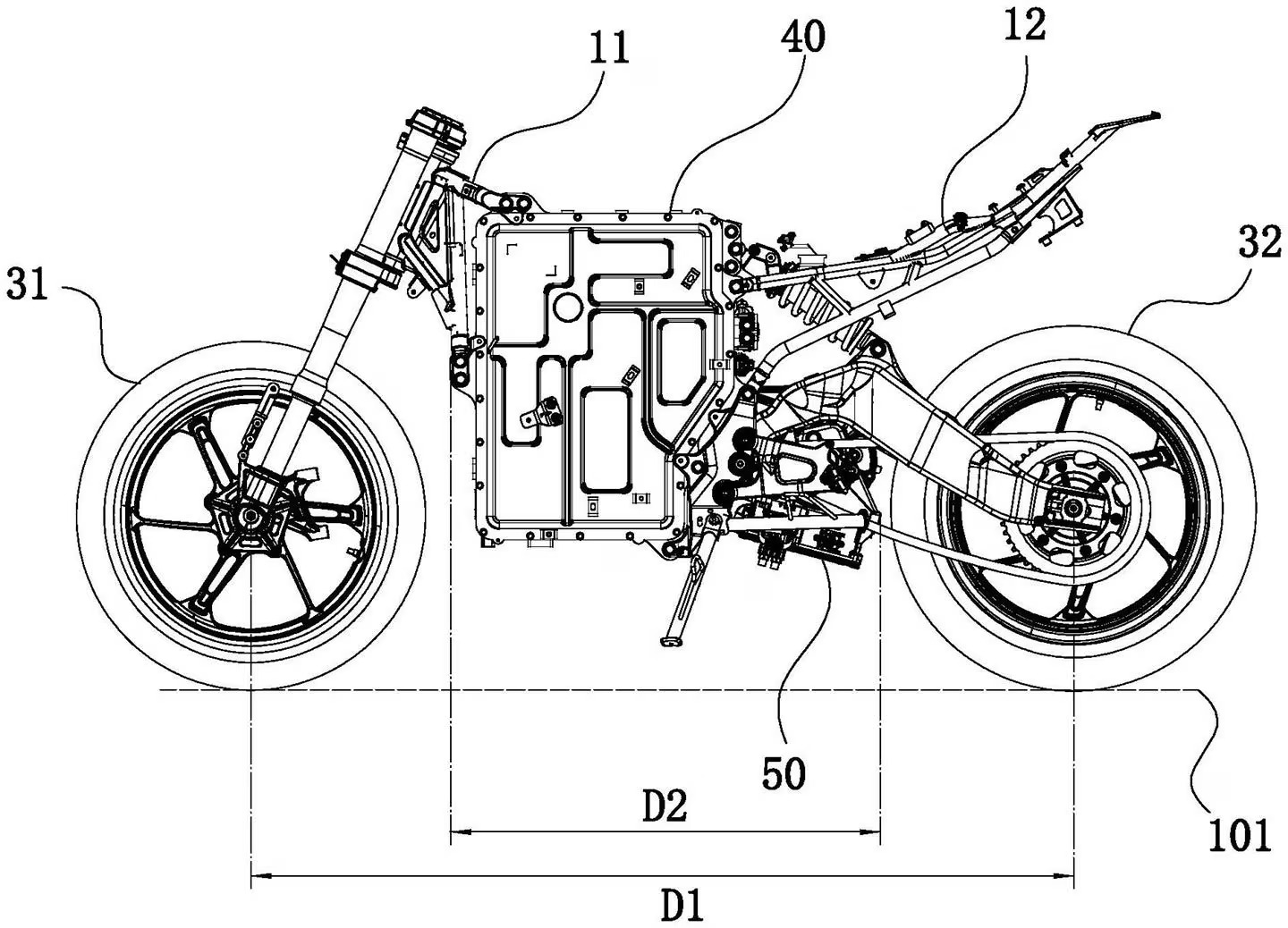

The patent application focuses particularly on the upper mounting bracket for the rear shock, the element CFMoto is seeking to protect, though whether it clears the threshold for true novelty remains to be seen. What stands out is the level of engineering detail disclosed. The images show mounting points for ancillary components, structural stiffening ribs cast into the battery casing, and pressed aluminium covers on either side. The consistent theme is weight and packaging efficiency, two of the defining challenges for any electric sportbike attempting to deliver credible performance and range.
The visuals suggest a chain final drive, although the documentation allows for either chain or belt. Suspension, braking hardware and wheels appear closely related to those used on the CFMoto 450SS, potentially hinting at performance comparable to that 51-horsepower, 375-pound platform.
Given CFMoto’s rapid product cadence in recent years, a production version would not be unexpected in the near term. That said, the brand’s CF-X electric motocross concept, revealed in 2024 and similarly supported by multiple patent filings, has yet to reach showrooms. As ever with patents, they offer a window into intent, not a guarantee of arrival.
